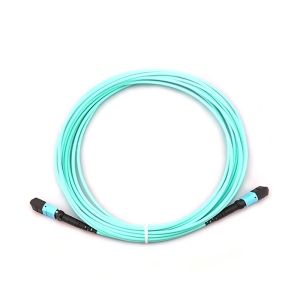

Customized OM3 OM4 Male Female MPO Trunk 8/16/28/48/96 Cores Fiber Patch Cable Meta Description: Explore our MTP/MPO Cable Assemblies, ideal for data distribution. Available in single-mode and multimode with 12, 24, 48, and 72 fibers. Durable and versatile for various applications.
MTP/MPO Cable Assemblies, commonly recognized as MTP® Breakout Fiber as well, are primarily utilized for data distribution patch panels, including plenum applications. FiberMania Cable supplies MTP® breakout cables in single-mode and multimode, employing 12, 24, 48, and 72 fibers. The MTP® fiber cable splits one 12-strand MTP® fiber optic cable into 12 individual SC cables. Fan-out style MTP® cable is available in both male and female styles, varying in length and by the diameter of the fan tube.
Features
- Versatile Fiber Options: Available in single-mode and multimode configurations.
- Multiple Fiber Counts: Choose from 12, 24, 48, or 72 fibers to suit your requirements.
- Breakout Design: Each assembly splits one 12-strand MTP® fiber optic cable into 12 individual SC cables, enhancing connectivity options.
- Fan-Out Styles: Available in both male and female configurations, ensuring compatibility with various setups.
- Customizable Lengths: Select from a variety of lengths and tube diameters for optimal installation flexibility.
Applications
- Data Distribution Patch Panels
- High-Density Networking Environments
- Plenum Spaces
Specification
| Connector | MPO/MTP(Male/Female) |
| Fiber Mode | SM(OS2) | MM(OM1/OM2/
OM3/OM4/OM5) |
| Polishing Type | PC | APC | PC |
| Insertion Loss | Typical≤0.30dB
Max≤0.75dB
Typical≤0.15dB (Elite)
Max≤0.35dB (Elite) | Typical≤0.50dB
Max≤0.25dB
Typical≤0.10dB (Elite)
Max≤0.35dB (Elite) |
| Return Loss | ≥50dB
≥55dB(Elite) | ≥60dB
≥65dB(Elite) | ≥35dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB (1000 times mating) |
| Fiber Count | 8/12/24/48/72/96/144 Fibers |
| Cable Jacket | PVC/OFNR/OFNP/LSZH |
| RoHS Compliancy Status | Compliant |
Quality Testing Program
IL and RL Testing
Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.
3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.
End-Face Inspection
Examine the connector end face for any scratches, defects, or contamination to ensure the tips remain clean. This practice enhances communication quality and reliability, thereby contributing to network uptime.
Production Equipment
Packaging & Shipping
Why Choose FiberMania?
Our MTP/MPO Cable Assemblies are manufactured to the highest standards, ensuring durability and exceptional performance. With a commitment to quality and customer satisfaction, FiberMania is your trusted partner for fiber optic solutions.
Call to Action
Upgrade your network infrastructure today with our MTP/MPO Cable Assemblies! [Shop Now]
